How To Rename an ONTAP Cluster and Its Nodes

Renaming a NetApp ONTAP cluster is something that I’ve been asked about more than a few times; usually it’s related to a cluster changing locations, or when you’ve done a controller migration by adding a new pair of controllers into the cluster and removed the old pair.   It’s pretty straightforward and non-disruptive. It can be manually done, or even automated (but that’s another blog!)

Let’s start by looking at the cluster name (identity).

Mother::> cluster identity show
          Cluster UUID: 99a0be28-9999-99ea-9a99-00a098c34804
          Cluster Name: Mother
 Cluster Serial Number: 1-80-000011
      Cluster Location: Erehwon
       Cluster Contact: @SpindleNinja

Note that the cluster has nodes that match the naming schema.

Mother::> cluster show
Node                  Health Eligibility
--------------------- ------- ------------
Mother-01             true true
Mother-02             true true
2 entries were displayed.

Let’s start to rename!

Mother::> cluster identity modify -name WOPR

Now we can see that the identity has changed.

WOPR::> cluster identity show
          Cluster UUID: 99a0be28-9999-99ea-9a99-00a098c34804
          Cluster Name: WOPR
 Cluster Serial Number: 1-80-000011
      Cluster Location: Erehwon
       Cluster Contact: @SpindleNinja

 If we look at the nodes, however, they are still called by the old cluster’s name.

WOPR::> cluster show
Node                  Health Eligibility
--------------------- ------- ------------
Mother-01             true true
Mother-02             true true
2 entries were displayed.

To rename them,  run the “system node rename” command.

WOPR::> system node rename -node Mother-01 -newname WOPR-01
[Job 962] Job succeeded: Rename of the node "Mother-01" to "WOPR-01" is successful.
WOPR::> system node rename -node Mother-02 -newname WOPR-02
[Job 963] Job succeeded: Rename of the node "Mother-02" to "WOPR-02" is successful.

Now, we can see that the names have changed.

WOPR::> cluster show
Node                  Health Eligibility
--------------------- ------- ------------
WOPR-01               true true
WOPR-02               true true
2 entries were displayed.

Note: If you just want to rename to renumber the nodes, this is all you need to do:   Run the “system node rename” command and just change the -XX value. The names are all, technically, arbitrary anyway.

WOPR::> system node rename -node WOPR-02 -newname WOPR-99
[Job 976] Job succeeded: Rename of the node "WOPR-02" to "WOPR-99" is successful.
WOPR::> cluster show
Node                  Health Eligibility
--------------------- ------- ------------
WOPR-01               true true
WOPR-99               true true
2 entries were displayed.

And we can rename it back:

WOPR::> system node rename -node WOPR-99 -newname WOPR-02
[Job 977] Job succeeded: Rename of the node "WOPR-99" to "WOPR-02" is successful.
WOPR::> cluster show
Node                  Health Eligibility
--------------------- ------- ------------
WOPR-01               true true
WOPR-02               true true

Let’s take a look at the rest of the parts of the cluster.

Note that the admin and node vservers (SVMs) were renamed automatically, so there is no need to do anything here.

WOPR::> vserver show
                           Admin     Operational   Root
Vserver   Type Subtype     State     State         Volume     Aggregate
----------- ------- ---------- ---------- ----------- ---------- ----------
iSCSI     data    default  running   running       iSCSI_root N1_aggr1
WOPR      admin -  - -     - -
WOPR-01   node -   - -     - -
WOPR-02   node -   - -     - -
4 entries were displayed.

The network LIFs are another story.  They will need to be manually renamed.

WOPR::> net int show -lif Mother*
  (network interface show)
            Logical    Status Network            Current Current Is
Vserver     Interface Admin/Oper Address/Mask       Node Port Home
----------- ---------- ---------- ------------------ ------------- ------- ----
Cluster
            Mother-01_clus1 up/up 169.254.206.139/16 WOPR-01 e0e true
            Mother-01_clus2 up/up 169.254.46.169/16  WOPR-01 e0f true
            Mother-02_clus1 up/up 169.254.172.145/16 WOPR-02 e0e true
            Mother-02_clus2 up/up 169.254.214.1/16   WOPR-02 e0f true
WOPR
            Mother-01_mgmt1 up/up 192.168.1.221/24   WOPR-01 e0M true
            Mother-02_mgmt1 up/up 192.168.1.222/24   WOPR-02 e0M true

6 entries were displayed.

Renaming is straight forward, just time consuming.

WOPR::> net int rename -vserver Cluster -lif Mother-01_clus1 -newname WOPR-01_clus1
  (network interface rename)
WOPR::> net int rename -vserver Cluster -lif Mother-01_clus2 -newname WOPR-01_clus2
  (network interface rename)
WOPR::> net int rename -vserver Cluster -lif Mother-02_clus1 -newname WOPR-02_clus1
  (network interface rename)
WOPR::> net int rename -vserver Cluster -lif Mother-02_clus2 -newname WOPR-02_clus2
 (network interface rename)
WOPR::> net int rename -vserver WOPR -lif Mother-01_mgmt1 -newname WOPR-01_mgmt1
 (network interface rename)
WOPR::> net int rename -vserver WOPR -lif Mother-02_mgmt1 -newname WOPR-02_mgmt1
 (network interface rename)
WOPR::> net int show -lif Mother*
 (network interface show)
There are no entries matching your query.

(Now that looks better.  )

WOPR::> net int show -lif WOPR*
  (network interface show)
            Logical    Status Network            Current Current Is
Vserver     Interface Admin/Oper Address/Mask       Node Port Home
----------- ---------- ---------- ------------------ ------------- ------- ----
Cluster
            WOPR-01_clus1 up/up   169.254.206.139/16 WOPR-01       e0e true
            WOPR-01_clus2 up/up   169.254.46.169/16 WOPR-01       e0f true
            WOPR-02_clus1 up/up   169.254.172.145/16 WOPR-02       e0e true
            WOPR-02_clus2 up/up   169.254.214.1/16 WOPR-02       e0f true
WOPR
            WOPR-01_mgmt1 up/up   192.168.1.221/24 WOPR-01       e0M true
            WOPR-02_mgmt1 up/up   192.168.1.222/24 WOPR-02       e0M true
6 entries were displayed.

You also might want to make sure that you don’t need to rename aggrs.  I don’t rename them here in my lab, but renaming an aggr is also non-disruptive by using the “storage aggregate rename” command.

WOPR::> aggr show
Aggregate     Size Available Used% State   #Vols Nodes RAID Status
--------- -------- --------- ----- ------- ------ ---------------- ------------
N1_aggr1    3.05TB 1.98TB   35% online 23 WOPR-01          raid_dp,normal
N2_aggr1    3.05TB 2.19TB   28% online 10 WOPR-02          raid_dp,normal
root_aggr0_N1 368.4GB 17.85GB  95% online 1 WOPR-01     raid_dp,normal
root_aggr0_N2 368.4GB 17.85GB  95% online 1 WOPR-02     raid_dp,normal
4 entries were displayed.
WOPR::>

If we take a look at Active IQ Unified Manager,  the name has been updated in there:

QIAUM

So there we have it.   It’s pretty straightforward for a procedure that one might think renaming would really confuse things in a cluster.

NetApp ONTAP 9.6 New Features and Functions (plus some new hardware!)

Untitled 2
NetApp announced ONTAP 9.6 with new features and functions as well as a new mid-level NVMe hardware platform, the all NVMe A320.

  • (Going forward) All version of ONTAP will be “long term supported”
  • New (and renamed) version of ONTAP System Manager that is based on REST APIs
  • Simpler FlexGroup management
  • Adaptive QoS support for NVMe/FC (maximums)
  • Additional host support for NVMe
  • FabricPool tiers to Google and Alibaba clouds
  • FlexCache extended to use with Cloud Volumes ONTAP
  • FlexGroups on MetroCluster.
  • Larger ONTAP Select “Premium XL” license
  • Over-the-wire encryption with SnapMirror and FlexCache
  • Per tenant / SVM encryption key management
  • Aggregate-level encryption which enables aggregate level dedupe with NVE
  • Entry level AFF and FAS MetroCluster over IP
  • Easy deploy plugin for ONTAP Select in VMware
  • SnapMirror Synchronous support for NFSv4, SMB2 & 3
  • Self Encrypting Drives (SED) NVMe SSDs

Now let’s look at a few of my favorites:

New ONTAP Support Policy
Going forward all ONTAP releases will be “long term supported.” Previously, “even” versions were short term supported (one year)  and “odd” versions were long term supported (three years). The new support policy will be fully support for three years, limited support for two years, and “self-service” support for three years after.

FlexGroups
FlexGroups operate as a “scale-out NAS container” utilizing a single NAS point to allow access and automatic load distribution across multiple constituents, which rests on multiple aggregates across the ONTAP cluster. In ONTAP 9.6, support for MetroCluster (FC and IP) is now supported and can be created on existing MetroCluster deployments after upgrading to ONTAP 9.6. Additional Out-Of-Space protection was also introduced; this is called in to action when one of the constituents gets a little fuller than the others. It will end up “borrowing” space (up to 1%) from the other constituents to allow the write to complete.

Over-the-Wire Encryption With Snapmirror and FlexCache
Snapmirror has been around since just about the dawn of NetApp. Tried and true, it’s the backbone of replication and migration in ONTAP systems. Now with ONTAP 9.6, SnapMirror and Snapmirror Synchronous  is encrypted (TLS v1.2) end to end and is enabled by default on all new SnapMirror relationships.  End-to-end encryption is also now available on the new version of FlexCache, which made its debut with ONTAP 9.5. FlexCache is a feature of ONTAP that allows you to extend and/or accelerate data access within a cluster or more, typically across the WAN to remote clusters.

Aggregate-Level Encryption:
NetApp Volume Encryption was introduced back in ONTAP 9.1 as a quick and easy way to get encryption at rest on ONTAP.  Shortly after, aggregate level dedupe was introduced back in 9.2. The downside was that you could not do NVE and ALD at the same time due to each volume being encrypted with a different key for security.  However, with ONTAP 9.6 you’re given the option to encrypt at a aggregate level, giving each volume the same key (technically), so ALD is able to read all the blocks across the volume.

Entry Level AFF and FAS MetroCluster of IP:
The A220 and FAS2750 will now support MetroCluster over IP (MCC-IP) which was initially only available on the larger A700 and FAS900 system, and then later on for the mid-level A300 and 8200 systems. This gives the entry level solutions the ability to utilize MetroCluster of IP functionality. To further lower the entry cost of MCC IP, new deployments of MCC IP are able to use existing switches within the customers datacenter for the ISL.  (Note: Certain requirements are required for this option.  Please contact your NetApp Partner or NetApp Rep for further details. )

New Platform AFF A320 All NVMe Controller
The A320 is the mid-level version of the all NVMe A800 that debuted last year and offers the same end-to-end NVMe connectivity. Onboard are 8x 100GbE (can also support 40GbE) ports for connectivity and shelf expansion. Ports “e0a” and “e0d” are reserved for shared cluster and HA interconnects. Each controller has two expansion slots that can be configured with either the 4 port 10GbE networking, or the 4 port 32Gb FC or 25/100GbE RoCE. Along with the release of the A320, there will be an all NVMe expansion shelf,  the NS224 that will be available.

A320

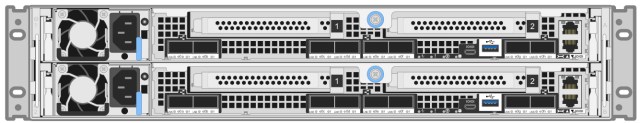

Rear view of the A320 each controller has 8x 100GbE ports + 2 expansion slots.
